3RH1921-1CD01 | Siemens

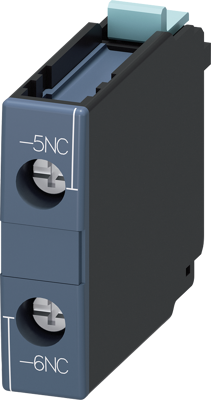

Auxiliary switch, 1 pole, 10 A, 1 Form B (N/C), screw connection, 3RH1921-1CD01
Order No.: 27H2982
EAN: 4011209367999
MPN:
3RH1921-1CD01
3RH19211CD01
Unit Price (€ / pc.)
12.3522 € *
Standard delivery time from the manufacturer is: 1 Week
Front-side auxiliary switch, 1 NC contact, delayed,screw terminal, for contactors 3RT1 auxiliary switch SIRIUS 3RH19 for the expansion of auxiliary contacts in the control circuit.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| Latching switching function | 1 Form B (N/C) | |
| Assembly | snap-on mounting | |
| Pin number | 1 pole | |
| Degree of protection (IP) | IP20 | |
| Version | auxiliary switch | |
| Rated current | 10 A | |
| rated voltage (AC) | 690 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
