6GK7543-6WX00-0XE0 | Siemens

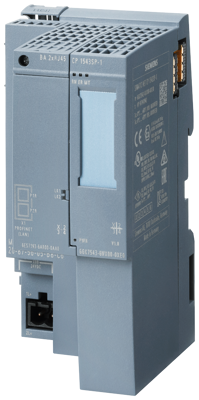

Communication processor for SIMATIC S7-ET 200SP, 100 Mbit/s, ethernet, (W x H x D) 60 x 117 x 74 mm, 6GK7543-6WX00-0XE0
Order No.: 70P5522
EAN: 4047622403570
MPN:
6GK7543-6WX00-0XE0
6GK75436WX000XE0
Series: SIMATIC S7-ET 200SP
Unit Price (€ / pc.)
1,032.5273 € *
Standard delivery time from the manufacturer is: 1 Week
6GK75436WX000XE0, Siemens
Communications processor CP 1543SP-1 for connection of an SIMATIC S7-ET 200SP to Industrial Ethernet- Security (firewall and VPN) Open IE communication (TCP/IP, ISO-on-TCP, UDP) PG/OP, S7 routing, IP broadcast/multicast, SNMPV1/V3, DHCP, secure email, IPV4/IPV6, support of SINEMA Remote Connect with autoconfiguration, time-of-day synchronization via NTP, access to web server of CPU, bus adapter required. .
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 60 mm | |
| Interfaces | ethernet | |
| Suitable for | SIMATIC S7-ET 200SP | |
| Assembly | DIN rail | |
| Version | communication processor | |
| Height | 117 mm | |
| Data transmission rate | 100000000 mb/s | |
| Depth | 74 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85176200 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | lead, 4,4'-isopropylidenediphenol |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
