5SP3840-2 | Siemens
Main circuit breaker, 1 pole, E Curve, 440 V, DIN rail, 5SP3840-2
Order No.: 27H6977
EAN: 4001869315133
MPN:
5SP3840-2
5SP38402
Unit Price (€ / pc.)
301.2961 € *
Standard delivery time from the manufacturer is: 2 Weeks

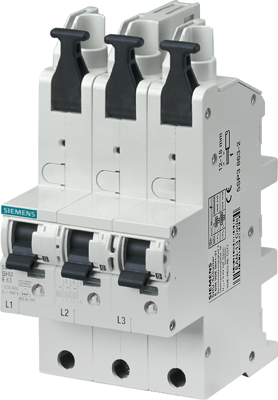

Main miniature circuit breaker (SHU), 3x 1-pole, E 40A, 230/400 V Mounting on 40 mm busbars The miniature circuit breaker is the fuse for short-circuit protection The miniature circuit breakers from Siemens, as an important component of the SENTRON protective components for electronic installations, provide effective protection for personnel and plants by reliably shutting down in the event of an overload or short-circuit. User-friendly mounting and connection technology, standardized additional components and an integrated design - these are the characteristics of the device family.
Features
- Effective personnel, investment and plant protection against overload and short-circuits
- Reliable safety during installation due to standard reach-around and touch protection
- Clearly visible switch position indicator
- Optimized technology for your safety
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 440 V | |
| Pin number | 1 pole | |
| Degree of protection (IP) | IP40 | |
| Assembly | DIN rail | |
| Tripping characteristics | E | |
| Product type | main circuit breaker |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85362010 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
