3VA6225-0KT31-0AA0 | Siemens

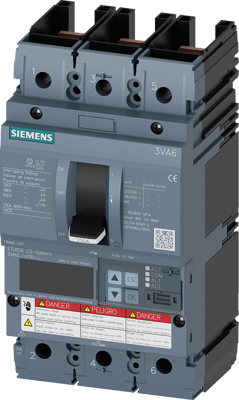

Circuit breaker, 3 pole, E Curve, 250 A, DIN rail, 3VA6225-0KT31-0AA0
Unit Price (€ / pc.)
3,104.71 € *
Standard delivery time from the manufacturer is: 1 Week
Circuit breaker 3VA6 UL frame 250 Breaking capacity Class E 200 kA @ 480 V 3-pole, line protection ETU856,LSI, In=250A overload protection Ir=100A ... 250A Short circuit protection Isd=0,6..10x In, Ii=1,5..10x in neutral protection optional with ext. CT-up to160% ground fault alarm alarm via EFB300 or COM W/O connection.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Tripping characteristics | E | |
| Rated current | 250 A | |
| Rated voltage (AC) | 690 V | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP40 | |
| Assembly | DIN rail | |
| Product type | circuit breaker |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85362090 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead, lead monoxide (lead oxide), Silicic acid, lead salt |
| Sustainable | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
