3VA5580-5EC36-2AA0 | Siemens

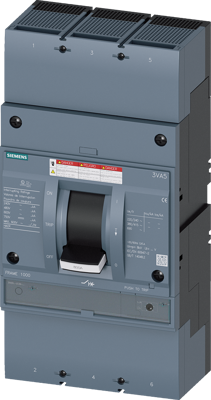

Name: Circuit breaker, 3 pole, M Curve, 800 A, DIN rail
Brand: Siemens
SKU: 81P5264
Price: 3,485.68 EUR
Availability: OutOfStock

Circuit breaker, 3 pole, M Curve, 800 A, DIN rail

Order No.: 81P5264

EAN: 4047624204427

MPN:

3VA5580-5EC36-2AA0

3VA55805EC362AA0

Series: 3VA5

Image may differ

Key Specification:

Pin number 3 pole

Tripping characteristics M

Rated current 800 A

Show 566 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

3,485.6766 € *

Available: 0 pcs.

Leadtime: 5 Weeks **

Add to Cart

Total Price:

3,485.68 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Circuit breaker 3VA5 UL frame 800 Breaking capacity Class M 35kA @ 480 V 3-pole, line protection TM230,FTAM, In=800A overload protection Ir=800A Fixed Short circuit protection Ii=5...10 x In Al-lug, line and load side.

Technical specifications

	Tripping characteristics	M
	Rated current	800 A
	Assembly	DIN rail
	Pin number	3 pole

Show similar products 0

Download

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	MX
Customs tariff number	85362090

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	No
Substance description	Lead
