3VA5570-5GC42-2AA0 | Siemens

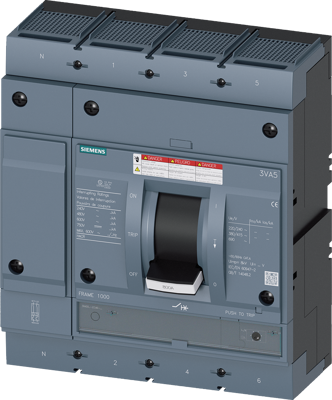

Circuit breaker, 4 pole, M Curve, 700 A, DIN rail, 3VA5570-5GC42-2AA0
Unit Price (€ / pc.)
4,005.54 € *
Standard delivery time from the manufacturer is: 5 Weeks
Circuit breaker 3VA5 UL frame 800 Breaking capacity Class M 35kA @ 480 V 4-pole, line protection TM230,FTAM, In=700A overload protection Ir=700A Fixed Short circuit protection Ii=5...10 x in neutral protection 1 nut keeper kit on both sides.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (AC) | 690 V | |
| Assembly | DIN rail | |
| Tripping characteristics | M | |
| Rated current | 700 A | |
| Degree of protection (IP) | IP40 | |
| Product type | circuit breaker | |
| Pin number | 4 pole | |
| Rated voltage (DC) | 1000 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85362090 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| Substance description | lead, Perfluorobutane sulfonic acid (PFBS) and its salts |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
