3VA2225-5HN42-0BB0 | Siemens

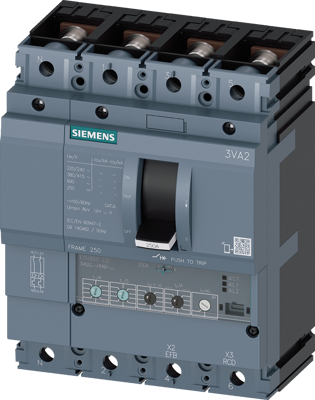

Circuit breaker, 4 pole, M Curve, 250 A, DIN rail, 3VA2225-5HN42-0BB0
Unit Price (€ / pc.)
1,801.6719 € *
Standard delivery time from the manufacturer is: 1 Week
Circuit breaker 3VA2 IEC frame 250 breaking capacity class M Icu=55kA @ 415V 4-pole, line protection ETU350, LSI, In=250A overload protection Ir=100A...250A short-circuit protection Isd=1.5...10 x Ir, Ii=10 x In N conductor protection adjustable (OFF, 50%, 100%) nut keeper kit Circuit breaker 3VA2 IEC frame 250 breaking capacity class M Icu=55kA @ 415V 4-pole, line protection ETU350, LSI, In=250A overload protection UNDERVOLTAGE RELEASE 24 V DC ACCESSORY FOR 3VA1 and 3VA20 up 2 AUXILIARY SWITCH CHANGEOVER H.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP40 | |
| Rated voltage (AC) | 690 V | |
| Rated current | 250 A | |
| Assembly | DIN rail | |
| Tripping characteristics | M | |
| Product type | circuit breaker | |
| Pin number | 4 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85362090 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead, lead monoxide (lead oxide), Silicic acid, lead salt |
| Date of RoHS guidelines | 3/31/15 |
