3NJ4183-3BF01 | Siemens

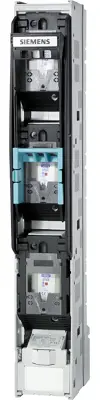

Fuse load-break switch, 3 pole, 662 A, 1000 V, (W x H x D) 100 x 662 x 195 mm, busbar, 3NJ4183-3BF01
Order No.: 27H1892
EAN: 4011209513365
MPN:
3NJ4183-3BF01
3NJ41833BF01
Unit Price (€ / pc.)
774.4044 € *
Standard delivery time from the manufacturer is: 1 Week
Fuse switch disconnector 3-pole selectable, for protection of transformers on the secondary side up to 630 kVA for LV HRC fuses GTR 910 A max., 400 V AC, and NH3 disconnecting blade up to 1250 A The 3NJ4 fuse switch disconnectors for low-voltage distribution. 3NJ4 1-pole and 3-pole in-line fuse switch disconnectors can be installed in low-voltage distribution boards, substations and cable distribution cubicles.
Features
- Compliance with IEC/EN 60439-1 and IEC/EN 60947-3
- Voltage levels up to 690 V AC
- Parking position for maintenance
- Vertical and horizontal mounting position
- Weathering resistance
- Degree of protection IP30 with closed fuse carriers, IP10 with open fuse carriers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP30 | |
| Width | 100 mm | |
| Height | 662 mm | |
| Assembly | busbar | |
| Depth | 195 mm | |
| Permanent current | 662 A | |
| Product type | fuse load-break switch | |
| Pin number | 3 pole | |
| Isolation voltage | 1000 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
