3LD5810-0TK13 | Siemens

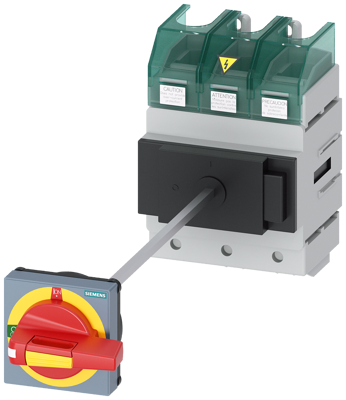

Emergency stop load-break switch, rotary actuator, 3 pole, 160 A, 690 V, (W x H x D) 113 x 178 x 158 mm, front mounting, 3LD5810-0TK13
Unit Price (€ / pc.)
362.1408 € *
Standard delivery time from the manufacturer is: 1 Week
3LD58100TK13, Siemens
SENTRON, Molded case switch 3LD5 UL, Emergency switching-off, 3-pole, certified according to UL489 UL60947-4-1 and IEC60947-3, UL: 150A, SCCR 50kA at 480VAC, Operating power at 480VAC 3-phase: 100hp, IEC: 160A, Operating power at AC-23A at 400V: 75kW, floor mounting with door coupling rotary operating mechanism, defeatable, emergency switching-off, 4-hole mounting of the handle, without tolerance compensation, incl. terminal covers for the infeed side .
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolation voltage | 690 V | |
| Depth | 158 mm | |
| Height | 178 mm | |
| Assembly | front mounting | |
| Width | 113 mm | |
| Permanent current | 160 A | |
| Degree of protection (IP) | IP65 | |
| Actuator | rotary actuator | |
| Product type | emergency stop load-break switch | |
| Pin number | 3 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | in_review |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
