3LD5620-0TL11 | Siemens

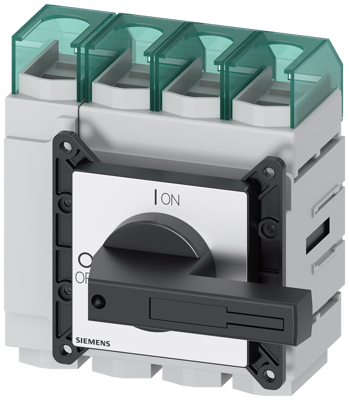

Main switch, rotary actuator, 4 pole, 125 A, 690 V, (W x H x D) 151 x 178 x 93 mm, front mounting, 3LD5620-0TL11
Unit Price (€ / pc.)
320.6931 € *
Standard delivery time from the manufacturer is: 1 Week
3LD56200TL11, Siemens
SENTRON, Molded case switch 3LD5 UL, Main switch, 4-pole, certified according to UL489 UL60947-4-1 and IEC60947-3, UL: 125A, SCCR 65kA at 480VAC, Operating power at 480VAC 3-phase: 75hp, IEC: 125A, Operating power at AC-23A at 400V: 55kW, front-mounted, rotary operating mechanism, black, 4-hole mounting of the handle, incl. terminal covers for the infeed side .
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 93 mm | |
| Isolation voltage | 690 V | |
| Product type | main switch | |
| Height | 178 mm | |
| Permanent current | 125 A | |
| Assembly | front mounting | |
| Width | 151 mm | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP65 | |
| Actuator | rotary actuator |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | in_review |
| SVHC free | Yes |
