3LD5610-0TK13 | Siemens

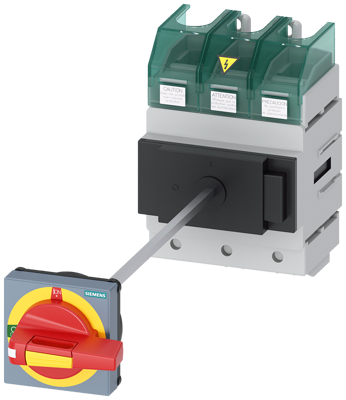

Emergency stop load-break switch, rotary actuator, 3 pole, 125 A, 690 V, (W x H x D) 113 x 178 x 158 mm, front mounting, 3LD5610-0TK13

Order No.: 70P6014
EAN: 4001869575599
MPN:
3LD5610-0TK13
3LD56100TK13
Series: SENTRON
3LD5610-0TK13 Siemens Circuit Breakers
Image may differ
Unit Price (€ / pc.)
269.2018 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
269.20 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
269.2018 €

3LD56100TK13, Siemens

SENTRON, Molded case switch 3LD5 UL, Emergency switching-off, 3-pole, certified according to UL489 UL60947-4-1 and IEC60947-3, UL: 125A, SCCR 65kA at 480VAC, Operating power at 480VAC 3-phase: 75hp, IEC: 125A, Operating power at AC-23A at 400V: 55kW, floor mounting with door coupling rotary operating mechanism, defeatable, emergency switching-off, 4-hole mounting of the handle, without tolerance compensation, incl. terminal covers for the infeed side .

Technical specifications
Permanent current 125 A
Actuator rotary actuator
Degree of protection (IP) IP65
Depth 158 mm
Assembly front mounting
Width 113 mm
Height 178 mm
Product type emergency stop load-break switch
Pin number 3 pole
Isolation voltage 690 V
Logistics
Country of origin DE
Customs tariff number 85365080
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform in_review
