3LD3148-0TK51 | Siemens

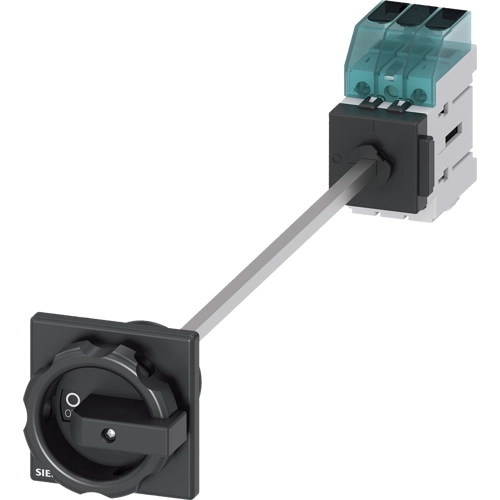

Main switch, rotary actuator, 3 pole, 25 A, 690 V, (W x H x D) 36 x 60 x 380 mm, fixed mounting, 3LD3148-0TK51

Order No.: 27H1723
EAN: 4001869550572
MPN:
3LD3148-0TK51
3LD31480TK51
3LD3148-0TK51 Siemens Circuit Breakers
Image may differ
Unit Price (€ / pc.)
51.7174 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
51.72 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
51.7174 €
Load disconnector 3LD3, Iu 25 A Main switch 3-pole Rated operating capacity at AC-23 A at 400V 9.0kW floor mounting Basic switch with door coupling Central hole mounting 22.5mm Rotating drive black 66 x 66 mm.
Technical specifications
Permanent current 25 A
Actuator rotary actuator
Degree of protection (IP) IP65
Depth 380 mm
Assembly fixed mounting
Width 36 mm
Height 60 mm
Product type main switch
Pin number 3 pole
Isolation voltage 690 V
Logistics
Country of origin DE
Customs tariff number 85365080
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
