3LD2886-2GP21 | Siemens

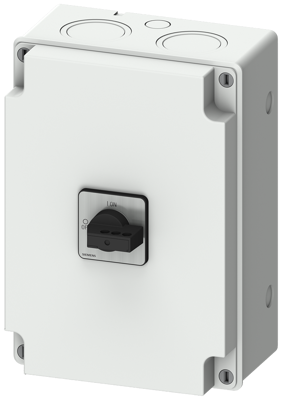

Repair switch, rotary actuator, 3 pole, 125 A, 690 V, (W x H x D) 212 x 302 x 181 mm, front mounting, 3LD2886-2GP21
Unit Price (€ / pc.)
435.4805 € *
Standard delivery time from the manufacturer is: 1 Week
3LD28862GP21, Siemens
SENTRON switch disconnector 3LD in molded-plastic enclosure , repair and maintenance switch with EMC plate, 3-pole Iu: 125A, AC23A 400V at 50/60Hz: 45kW, used with frequency converter: AC20 400V at 0-550Hz: 45kW, 1NO + 1NC 20-150ms leading, molded-plastic encapsulation for metric cable gland, knob-operated mechanism, black, lockable in 0- and I-position, incl. cable shield clamps and hose clamps .
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 181 mm | |
| Isolation voltage | 690 V | |
| Product type | repair switch | |
| Height | 302 mm | |
| Permanent current | 125 A | |
| Assembly | front mounting | |
| Width | 212 mm | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP65 | |
| Actuator | rotary actuator |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
