3LD2830-0TK13 | Siemens

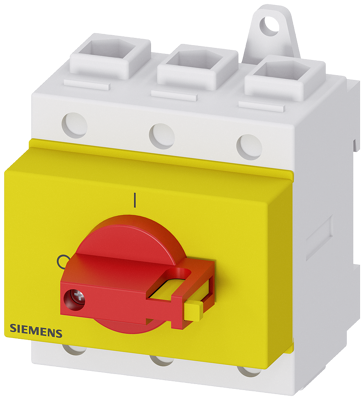

Emergency stop load-break switch, rotary actuator, 3 pole, 125 A, 690 V, (W x H x D) 71 x 83 x 97 mm, DIN rail, 3LD2830-0TK13
Unit Price (€ / pc.)
152.8317 € *
Standard delivery time from the manufacturer is: 1 Week
3LD28300TK13, Siemens
SENTRON, Switch disconnector 3LD, emergency switching-off switch, 3- pole, Iu: 125 A, operating power / at AC-23 A 400 V: 45 kW, installation in distribution boards, knob-operated mechanism, Red / yellow, handle direct at the switch .
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 97 mm | |
| Isolation voltage | 690 V | |
| Product type | emergency stop load-break switch | |
| Height | 83 mm | |
| Permanent current | 125 A | |
| Assembly | DIN rail | |
| Width | 71 mm | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP40 | |
| Actuator | rotary actuator |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
