3LD2555-1TP00-0AE8 | Siemens

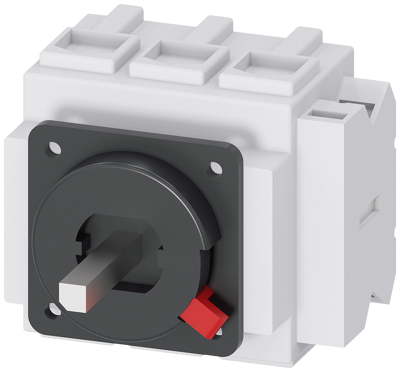

Load-break switch, 3 pole, 63 A, 690 V, (W x H x D) 71 x 64 x 80 mm, front mounting, 3LD2555-1TP00-0AE8
Unit Price (€ / pc.)
98.7105 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
98.71 € *
Price list
Quantity
Price per unit*
1 pcs.
98.7105 €
10 pcs.
96.7708 €
*incl. VAT plus shipping costs
Subject to prior sale
3LD25551TP000AE8, Siemens
SENTRON, Switch disconnector 3LD, breaker, 3-pole, Iu: 63 A, Operating power / at AC- 23 A at 400 V: 22 kW, front-mounted, 1 NC, 1 NO, without, Central mounting 22.5 mm of the handle .
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 80 mm | |
| Isolation voltage | 690 V | |
| Product type | load-break switch | |
| Height | 64 mm | |
| Permanent current | 63 A | |
| Assembly | front mounting | |
| Width | 71 mm | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
