3LD2555-0TK51 | Siemens

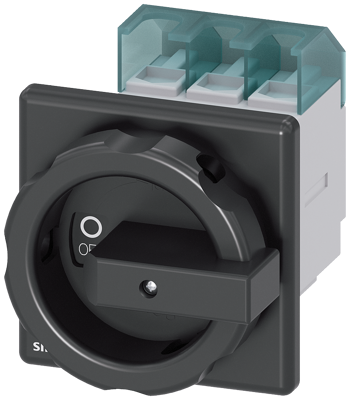

Main switch, rotary actuator, 3 pole, 63 A, 690 V, (W x H x D) 90 x 107 x 132.5 mm, front mounting, 3LD2555-0TK51

Order No.: 70P5926
EAN: 4011209403345
MPN:
3LD2555-0TK51
3LD25550TK51
Series: SENTRON
3LD2555-0TK51 Siemens Circuit Breakers
Image may differ
Unit Price (€ / pc.)
75.2437 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
75.24 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
75.2437 €

3LD25550TK51, Siemens

SENTRON, Switch disconnector 3LD, main switch, 3-pole, Iu: 63 A, Operating power / at AC-23 A at 400 V: 22 kW, front-mounted, rotary operating mechanism, black, central mounting 22.5 mm of the handle .

Technical specifications
Permanent current 63 A
Actuator rotary actuator
Degree of protection (IP) IP65
Depth 132.5 mm
Assembly front mounting
Width 90 mm
Height 107 mm
Product type main switch
Pin number 3 pole
Isolation voltage 690 V
Logistics
Country of origin DE
Customs tariff number 85365080
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
