3LD2530-0TK11 | Siemens

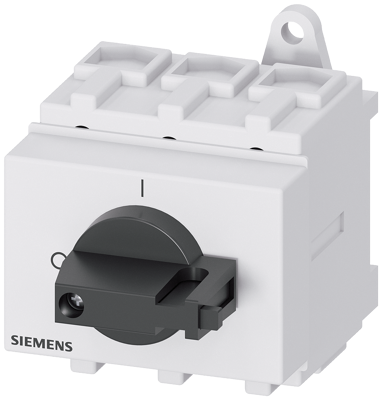

Main switch, rotary actuator, 3 pole, 63 A, 690 V, (W x H x D) 64 x 64 x 93 mm, DIN rail, 3LD2530-0TK11
Unit Price (€ / pc.)
68.6511 € *
Standard delivery time from the manufacturer is: 1 Week
3LD25300TK11, Siemens
SENTRON, Switch disconnector 3LD, main switch, 3-pole, Iu: 63 A, Operating power / at AC-23 A at 400 V: 22 kW, installation in distribution boards, knob-operated mechanism, black, handle direct at the switch .
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Actuator | rotary actuator | |
| Depth | 93 mm | |
| Isolation voltage | 690 V | |
| Pin number | 3 pole | |
| Permanent current | 63 A | |
| Degree of protection (IP) | IP40 | |
| Product type | main switch | |
| Width | 64 mm | |
| Assembly | DIN rail | |
| Height | 64 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
