3LD2305-7UK01 | Siemens

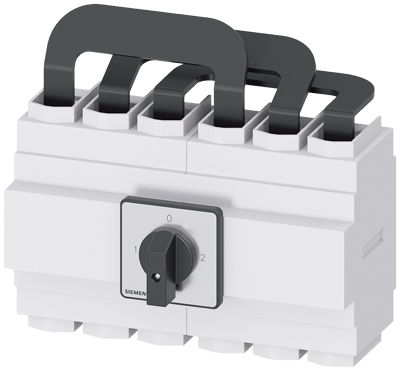

Changeover switch, rotary actuator, 3 pole, 160 A, 690 V, (W x H x D) 224 x 168 x 106 mm, front mounting, 3LD2305-7UK01

Order No.: 70P5872
EAN: 4011209768598
MPN:
3LD2305-7UK01
3LD23057UK01
Series: SENTRON
3LD2305-7UK01 Siemens Circuit Breakers
Image may differ
Unit Price (€ / pc.)
903.0672 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
903.07 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
903.0672 €

3LD23057UK01, Siemens

SENTRON, Switch disconnector 3LD, change-over switch, 3-pole, Iu: 160 A, Operating power / at AC-23 A at 400 V: 75 kW, front-mounted, knob-operated mechanism, black, 4-hole mounting of the handle .

Technical specifications
Filter Property Value
Permanent current 160 A
Actuator rotary actuator
Degree of protection (IP) IP65
Depth 106 mm
Assembly front mounting
Width 224 mm
Height 168 mm
Product type changeover switch
Pin number 3 pole
Isolation voltage 690 V
Logistics
Property Value
Country of origin DE
Customs tariff number 85365080
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
