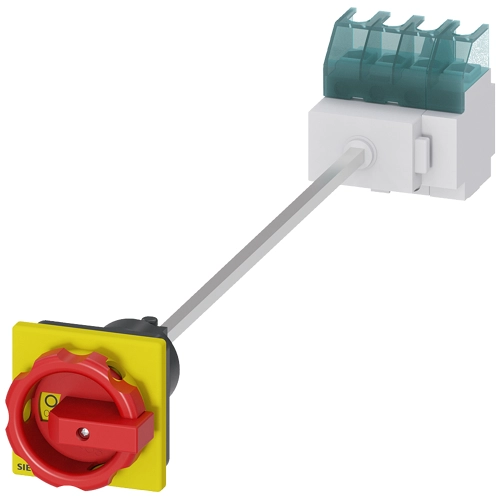

3LD2213-1TL53 | Siemens
Emergency stop load-break switch, rotary actuator, 4 pole, 32 A, 690 V, (W x H x D) 67 x 83 x 451.5 mm, front installation/DIN rail, 3LD2213-1TL53
Unit Price (€ / pc.)
79.4563 € *
Standard delivery time from the manufacturer is: 1 Week
3LD22131TL53, Siemens
SENTRON, Switch disconnector 3LD, emergency switching-off switch, 4- pole, Iu: 32 A, operating power / at AC-23 A 400 V: 11.5 kW, floor mounting with door coupling, rotary operating mechanism, Red / yellow, 4-hole mounting of the handle .
Technical specifications
| Permanent current | 32 A | |
| Actuator | rotary actuator | |
| Degree of protection (IP) | IP65 | |
| Depth | 451.5 mm | |
| Assembly | front installation/DIN rail | |
| Width | 67 mm | |
| Height | 83 mm | |
| Product type | emergency stop load-break switch | |
| Pin number | 4 pole | |
| Isolation voltage | 690 V |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
