3LD2064-1GP51 | Siemens

Main switch, rotary actuator, 3 pole, 16 A, 690 V, (W x H x D) 100 x 152 x 117 mm, front mounting, 3LD2064-1GP51

Order No.: 70P5754
EAN: 4011209512146
MPN:
3LD2064-1GP51
3LD20641GP51
Series: SENTRON
3LD2064-1GP51 Siemens Circuit Breakers

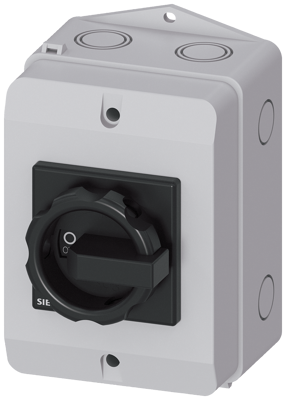

Image may differ
Unit Price (€ / pc.)
67.4492 € *
Available: 7 pcs.
Total Price:
67.45 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
67.4492 €

3LD20641GP51, Siemens

SENTRON, Switch disconnector 3LD, main switch, 3-pole, Iu: 16 A, Operating power / at AC-23 A at 400 V: 7.5 kW, molded-plastic encapsulation for metric screw connection, 1 NC, 1 NO, rotary operating mechanism, black .

Technical specifications
Filter Property Value
Depth 117 mm
Assembly front mounting
Pin number 3 pole
Actuator rotary actuator
Product type main switch
Degree of protection (IP) IP65
Height 152 mm
Permanent current 16 A
Width 100 mm
Isolation voltage 690 V
Logistics
Property Value
Country of origin DE
Customs tariff number 85365080
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
