8WD5320-5DB | Siemens

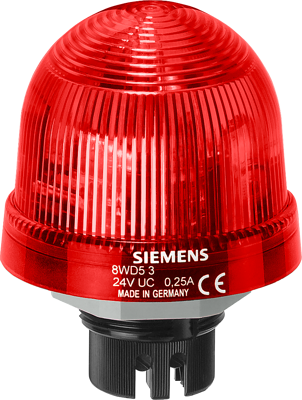

Recessed LED rotating beacon, Ø 70 mm, red, 24 V AC/DC, IP65, 8WD5320-5DB

Order No.: 80P9739
EAN: 4011209358157
MPN:
8WD5320-5DB
8WD53205DB
8WD5320-5DB Siemens Beacons
Image may differ
Unit Price (€ / pc.)
207.5717 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
207.57 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
207.5717 €

Integrated signal lamp, rotating light, with integrated LED, red, 24 V AC/DC, Diameter 70 mm Rotating light element SIRIUS 8WD5 including light sources for visual signaling in harsh ambient conditions and in outdoor installations, e.g. for the optical signaling of the operating status in production plants. The integrated signal lamps are extremely resistant to shock and vibrations. Their special shape permits optimum light emission either to the side or upwards. Feet, pipes, adapters, incandescent lamps, LEDs and pipe adapters are available as accessories. SIRIUS 8WD signaling column - Modular and with communication capability.

Technical specifications
Colour red
Degree of protection (IP) IP65
Rated current 40 mA
diameter 70 mm
Width 75 mm
Height 66 mm
Length 31 mm
Farbe der Beleuchtung red
Version LED rotating light
Voltage 24 V AC/DC
Logistics
Country of origin DE
Customs tariff number 85318070
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
