8WD5320-5AF | Siemens

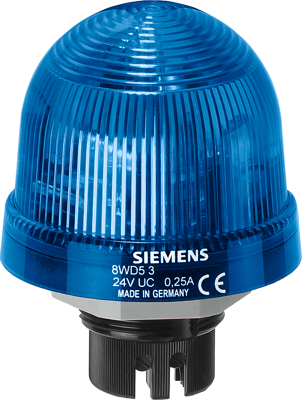

Recessed LED permanent light, Ø 70 mm, blue, 24 V AC/DC, IP65, 8WD5320-5AF
Order No.: 80P9725
EAN: 4011209919792
MPN:
8WD5320-5AF
8WD53205AF
Unit Price (€ / pc.)
166.1954 € *
Standard delivery time from the manufacturer is: 1 Week
Integrated signal lamp, continuous light, with integrated LED, blue, 24 V AC/DC, Diameter 70 mm Continuous light element SIRIUS 8WD5 including light sources for visual signaling in harsh ambient conditions and in outdoor installations, e.g. for the optical signaling of the operating status in production plants. The integrated signal lamps are extremely resistant to shock and vibrations. Their special shape permits optimum light emission either to the side or upwards. Feet, pipes, adapters, incandescent lamps, LEDs and pipe adapters are available as accessories. SIRIUS 8WD signaling column - Modular and with communication capability.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 70 mm | |
| Length | 31 mm | |
| Rated current | 45 mA | |
| Height | 66 mm | |
| Colour | blue | |
| Farbe der Beleuchtung | blue | |
| Voltage | 24 V AC/DC | |
| Width | 75 mm | |
| Degree of protection (IP) | IP65 | |
| Version | LED permanent light |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85318070 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
