8WD5320-5AB | Siemens
Recessed LED permanent light, Ø 70 mm, red, 24 V AC/DC, IP65, 8WD5320-5AB
Order No.: 80P9734
EAN: 4011209358218
MPN:
8WD5320-5AB
8WD53205AB
Unit Price (€ / pc.)
166.1954 € *
Standard delivery time from the manufacturer is: 1 Week

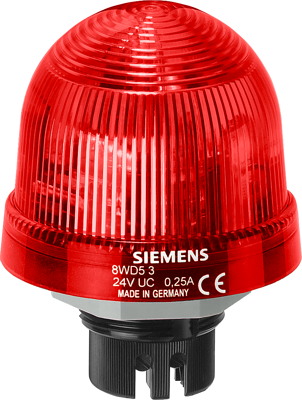

Integrated signal lamp, continuous light, with integrated LED, red, 24 V AC/DC, Diameter 70 mm Continuous light element SIRIUS 8WD5 including light sources for visual signaling in harsh ambient conditions and in outdoor installations, e.g. for the optical signaling of the operating status in production plants. The integrated signal lamps are extremely resistant to shock and vibrations. Their special shape permits optimum light emission either to the side or upwards. Feet, pipes, adapters, incandescent lamps, LEDs and pipe adapters are available as accessories. SIRIUS 8WD signaling column - Modular and with communication capability.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 75 mm | |
| Version | LED permanent light | |
| Degree of protection (IP) | IP65 | |
| Length | 31 mm | |
| Voltage | 24 V AC/DC | |
| Height | 66 mm | |
| diameter | 70 mm | |
| Farbe der Beleuchtung | red | |
| Colour | red | |
| Rated current | 45 mA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85318070 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
