6ES7531-7TF00-0AB0 | Siemens

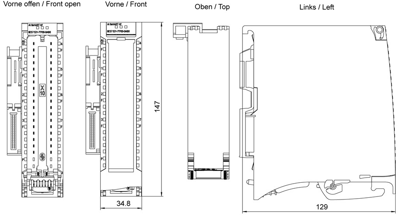

Input module for SIMATIC S7-1500, Inputs: 8, (W x H x D) 35 x 147 x 129 mm, 6ES7531-7TF00-0AB0
Order No.: 70P5007
EAN: 4047623412540
MPN:
6ES7531-7TF00-0AB0
6ES75317TF000AB0
Series: SIMATIC S7-1500
Unit Price (€ / pc.)
1,123.6694 € *
Standard delivery time from the manufacturer is: 1 Week
6ES75317TF000AB0, Siemens
SIMATIC S7-1500, analog input module AI 8xHART HF, accuracy 0.1%, 8 channels in groups of 4, common mode voltage: 30V AC/60V DC, diagnostics, process alarms, calibration in RUN, supplied with power supply element, shield clamp and shield terminal.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 147 mm | |
| Version | input module | |
| Depth | 129 mm | |
| Width | 35 mm | |
| Number of analogue inputs | 8 | |
| Suitable for | SIMATIC S7-1500 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389091 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead, lead monoxide (lead oxide), Silicic acid, lead salt |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
