3SU1150-1BA20-3FA0 | Siemens

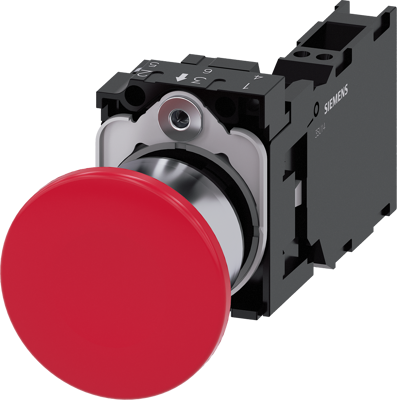

Mushroom pushbutton, unlit, latching, 1 Form A (N/O) + 1 Form B (N/C), waistband round, red, front ring silver, mounting Ø 22.3 mm, 3SU1150-1BA20-3FA0
Order No.: 27H1164
EAN: 4011209956414
MPN:
3SU1150-1BA20-3FA0
3SU11501BA203FA0
Unit Price (€ / pc.)
48.6234 € *
Standard delivery time from the manufacturer is: 1 Week
Mushroom pushbutton, 22 mm, round, metal, shiny, red, 40 mm, latching, pull-to-unlatch mechanism, with holder, 1 NO+1 NC, Spring-type terminal Mushroom pushbuttons SIRIUS ACT with large actuator for convenient operation using the whole hand.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Collar shape of the front frame | round | |
| Protection class | IP20/IP66/IP67/IP69K | |
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Contact function | latching | |
| Front ring colour | silver | |
| can be illuminated | No | |
| Installation depth | 71.7 mm | |
| Installation diameter | 22.3 mm | |
| Type of mounting | front panel mounting | |
| Actuator colour | red | |
| Connection | spring connection | |
| Product type | mushroom pushbutton | |
| Contact material | silver alloy | |
| Installation height | 27.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
