3SU1062-2DN60-0AA0 | Siemens

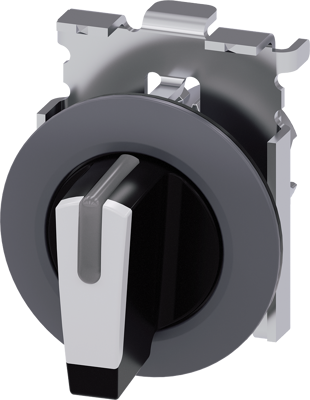

Toggle switch, illuminable, latching/groping, waistband round, white, front ring gray, 2 x 45°, trigger position 1 + 0 + 2, mounting Ø 30.5 mm, 3SU1062-2DN60-0AA0
Order No.: 80P8315
EAN: 4047621047669
MPN:
3SU1062-2DN60-0AA0
3SU10622DN600AA0
Unit Price (€ / pc.)
44.9344 € *
Standard delivery time from the manufacturer is: 1 Week
Selector switch, illuminable, 30 mm, round, Metal, matte, white, selector switch, short, front ring for flush installation, 3 switch positions I-O
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Trigger position key | 1 + 0 + 2 | |
| can be illuminated | Yes | |
| Contact function | latching/groping | |
| Installation diameter | 30.5 mm | |
| Rotation angle | 2 x 45° | |
| Protection class | IP66/IP67/IP69/IP69K | |
| Installation depth | 32.1 mm | |
| Installation height | 22.1 mm | |
| Front ring colour | gray | |
| Product type | toggle switch | |
| Collar shape of the front frame | round | |
| Actuator colour | white |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
