3SU1060-4LL11-0AA0 | Siemens

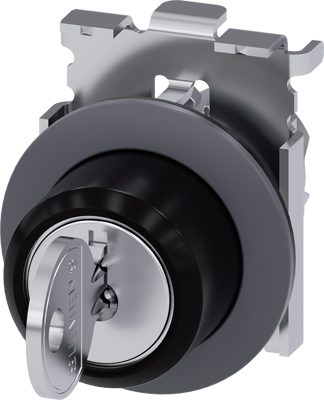

Key switch, Ronis, unlit, latching, waistband round, 2 x 45°, trigger position 0 + 1 + 2, mounting Ø 30.5 mm, 3SU1060-4LL11-0AA0

Order No.: 80P8295
EAN: 4011209968486
MPN:
3SU1060-4LL11-0AA0
3SU10604LL110AA0
Series: SIRIUS ACT
3SU1060-4LL11-0AA0 Siemens Actuators, Signal Elements and Front Elements
Image may differ
Unit Price (€ / pc.)
85.3706 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
85.37 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
85.3706 €
RONIS key-operated switch, 30 mm, round, metal, matte, front ring for flush installation, lock number SB30, with 2 keys, 3 switch positions I-O-II, latching, actuating angle 2x45°, 10:30h/12h/13:30h, Key removal I+O+II, possible special locks: SB31, 421, 455 Key-operated switches SIRIUS ACT for meeting higher demands for access security.
Technical specifications
Filter Property Value
Version Ronis
Product type key switch
Contact function latching
Rotation angle 2 x 45°
can be illuminated No
Protection class IP20/IP66/IP67/IP69K
Trigger position key 0 + 1 + 2
Collar shape of the front frame round
Installation diameter 30.5 mm
Logistics
Property Value
Customs tariff number 85389099
Country of origin CZ
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
