3SU1051-1EA40-0AA0 | Siemens

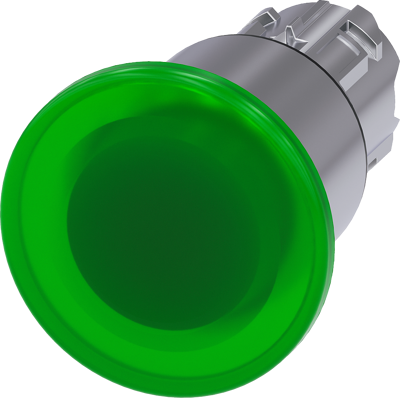

Mushroom pushbutton, illuminable, latching, waistband round, green, mounting Ø 22.3 mm, 3SU1051-1EA40-0AA0
Order No.: 27H1136
EAN: 4011209968813
MPN:
3SU1051-1EA40-0AA0
3SU10511EA400AA0
Unit Price (€ / pc.)
55.8467 € *
Standard delivery time from the manufacturer is: 1 Week
Illuminated mushroom pushbutton, 22 mm, round, metal, shiny, green, 40 mm, 3 switch positions, latches after pushing in, unlatches by pull-to-unlatch mechanism to center position, after pulling out the button Retraction to center position Mushroom pushbuttons SIRIUS ACT with large actuator for convenient operation using the whole hand.
Technical specifications
| Installation height | 32 mm | |
| Contact function | latching | |
| Installation diameter | 22.3 mm | |
| Actuator colour | green | |
| Product type | mushroom pushbutton | |
| Protection class | IP66/IP67/IP69K | |
| Installation depth | 24.6 mm | |
| Collar shape of the front frame | round | |
| can be illuminated | Yes |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85389099 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
| Sustainable | Yes |
