3SU1050-4JP31-0AA0 | Siemens

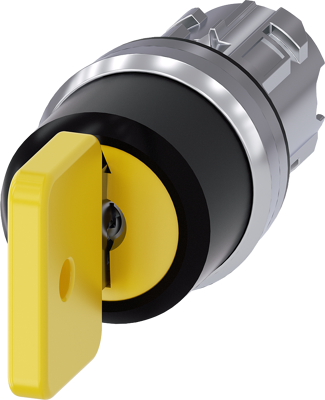

Key switch, O.M.R, unlit, groping/latching, waistband round, yellow, 2 x 45°, trigger position 2, mounting Ø 22.3 mm, 3SU1050-4JP31-0AA0
Unit Price (€ / pc.)
54.5258 € *
Standard delivery time from the manufacturer is: 1 Week
Key-operated switch O.M.R, 22 mm, round, metal, shiny, lock number 73033, yellow, with 2 keys, 3 switch positions I
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Collar shape of the front frame | round | |
| Trigger position key | 2 | |
| Protection class | IP20/IP66/IP67/IP69K | |
| Contact function | groping/latching | |
| can be illuminated | No | |
| Installation diameter | 22.3 mm | |
| Actuator colour | yellow | |
| Product type | key switch | |
| Version | O.M.R | |
| Rotation angle | 2 x 45° |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
