3SU1002-2BP10-0AA0 | Siemens

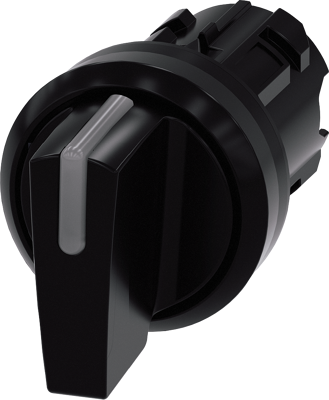

Toggle switch, illuminable, latching/groping, waistband round, black, front ring black, 2 x 45°, trigger position 1 + 0 + 2, mounting Ø 22.3 mm, 3SU1002-2BP10-0AA0
Order No.: 80P8106
EAN: 4047621016573
MPN:
3SU1002-2BP10-0AA0
3SU10022BP100AA0
Unit Price (€ / pc.)
16.0650 € *
Available: 1 pcs.
Total Price:
16.07 € *
Price list
Quantity
Price per unit*
1 pcs.
16.0650 €
5 pcs.
15.2796 €
10 pcs.
14.5656 €
25 pcs.
13.7088 €
*incl. VAT plus shipping costs
Subject to prior sale
Illuminable selector switch, 22 mm, round, plastic, black, Selector switch short, 3 switch positions I
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Collar shape of the front frame | round | |
| Trigger position key | 1 + 0 + 2 | |
| Protection class | IP66/IP67/IP69/IP69K | |
| Contact function | latching/groping | |
| Front ring colour | black | |
| can be illuminated | Yes | |
| Installation depth | 25.4 mm | |
| Installation diameter | 22.3 mm | |
| Actuator colour | black | |
| Product type | toggle switch | |
| Installation height | 28.8 mm | |
| Rotation angle | 2 x 45° |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
