3SU1000-5QF01-0AA0 | Siemens

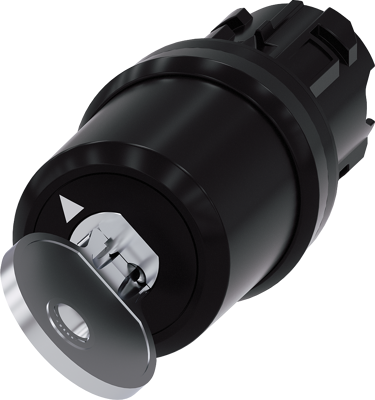

Key switch, BKS, unlit, latching, waistband round, 90°, trigger position 0, mounting Ø 22.3 mm, 3SU1000-5QF01-0AA0
Unit Price (€ / pc.)
112.5621 € *
Standard delivery time from the manufacturer is: 1 Week
Key-operated switch BKS, 22 mm, round, plastic, Lock number E1 (VW), without key, 2 switch positions O-I, latching, actuating angle 90°, 10:30h/13:30h, Key removal O Key-operated switches SIRIUS ACT for meeting higher demands for access security.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Trigger position key | 0 | |
| can be illuminated | No | |
| Contact function | latching | |
| Installation diameter | 22.3 mm | |
| Rotation angle | 90° | |
| Protection class | IP20/IP66/IP67/IP69K | |
| Product type | key switch | |
| Collar shape of the front frame | round | |
| Version | BKS |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| SVHC free | Yes |
| RoHS conform | Yes |
