3SU1000-4BP31-0AA0 | Siemens

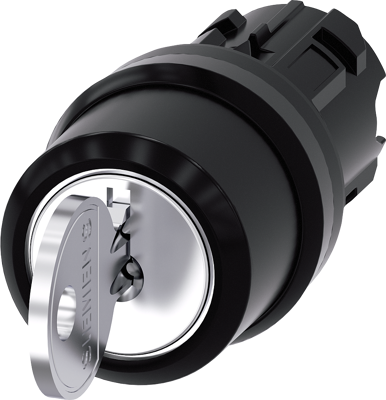

Key switch, Ronis, unlit, groping/latching, waistband round, 2 x 45°, trigger position 2, mounting Ø 22.3 mm, 3SU1000-4BP31-0AA0

Order No.: 80P7982
EAN: 4011209962644
MPN:
3SU1000-4BP31-0AA0
3SU10004BP310AA0
Series: SIRIUS ACT
3SU1000-4BP31-0AA0 Siemens Actuators, Signal Elements and Front Elements
Image may differ
Unit Price (€ / pc.)
37.2589 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
37.26 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
37.2589 €
RONIS key-operated switch, 22 mm, round, plastic, lock number SB30, with 2 keys, 3 switch positions IO-II, momentary contact on the left, latching on the right, actuating angle 2x45°, 10:30h/12h/13:30h, Key removal II, possible special locks: SB31, 421, 455 Key-operated switches SIRIUS ACT for meeting higher demands for access security.
Technical specifications
Filter Property Value
Trigger position key 2
Protection class IP20/IP66/IP67/IP69K
Version Ronis
Contact function groping/latching
Installation diameter 22.3 mm
Rotation angle 2 x 45°
Collar shape of the front frame round
can be illuminated No
Product type key switch
Logistics
Property Value
Customs tariff number 85389099
Country of origin CZ
Compliance
Property Value
RoHS conform Yes
Sustainable Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
