3SB2000-4PB01 | Siemens

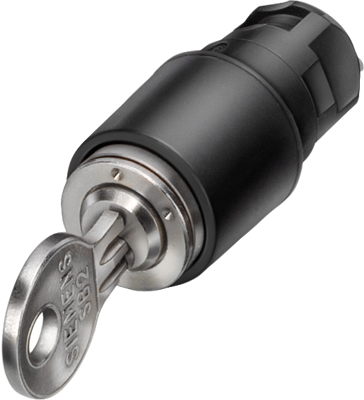

Key switch, CES, unlit, latching, waistband round, 2 x 62°, trigger position 1 + 0 + 2, mounting Ø 16 mm, 3SB2000-4PB01
Order No.: 80P7214
EAN: 4011209027848
MPN:
3SB2000-4PB01
3SB20004PB01
Unit Price (€ / pc.)
78.2425 € *
Standard delivery time from the manufacturer is: 2 Weeks
Key-operated switch, 16 mm, round, plastic, CES, SB2, 3 switch positions I-O-II, latching, Actuating angle 2 x 62 degree Key removal I+O+II, possible special locks: SB3, SB4, SB5 Key-operated switches SIRIUS 3SB2 for meeting higher demands for access security.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | CES | |
| Product type | key switch | |
| Contact function | latching | |
| Rotation angle | 2 x 62° | |
| can be illuminated | No | |
| Protection class | IP65 | |
| Trigger position key | 1 + 0 + 2 | |
| Collar shape of the front frame | round | |
| Installation diameter | 16 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 83014090 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
