5ST3778-0 | Siemens
Pin busbar, 1-phase + N,cuttable, 10 mm², (L x W x H) 1 m x 40.8 x 13 mm, 60 HP, for circuit breaker, 5ST3778-0
Order No.: 80P8532
EAN: 4001869566696
MPN:
5ST3778-0
5ST37780
Unit Price (€ / pc.)
87.5840 € *
Standard delivery time from the manufacturer is: 1 Week

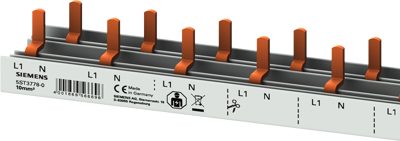

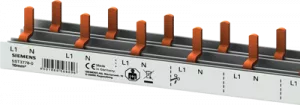

Pin Busbar, 5ST3778-0, Siemens
Compact Pin Busbar, 10 mm² connection: 1p/N compact device 1 MW + auxiliary switch 0.5 MW touch protected 1000mm cuttable.Features
- Can be universally retrofitted with all additional components
- User-friendly and easy installation and connection technology
- Reliable safety during installation with standard touch protection
- Optimized technology for your safety
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | pin busbar | |
| Height | 13 mm | |
| Length | 1 m | |
| Suitable for | circuit breaker | |
| Version | 1-phase + N,cuttable, 10 mm² | |
| cutting pitch differential | 60 HP | |
| Width | 40.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369001 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
