5ST3712-3HG | Siemens

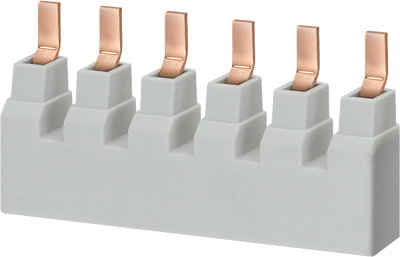

Pin busbar, 3-phase, cuttable, 18 mm², (L x W) 984 x 60 mm, for circuit breaker, 5ST3712-3HG
Order No.: 80P8530
EAN: 4001869484914
MPN:
5ST3712-3HG
5ST37123HG
Unit Price (€ / pc.)
129.4482 € *
Standard delivery time from the manufacturer is: 1 Week
Pin Busbar, 5ST3712-3HG, Siemens
Pin busbar, can be cut 18 mm², 3-phase+auxiliary switch 1016mm , according to UL 489, 480/277V for LS 5SJ4...-.HG.Features
- Can be universally retrofitted with all additional components
- User-friendly and easy installation and connection technology
- Reliable safety during installation with standard touch protection
- Optimized technology for your safety

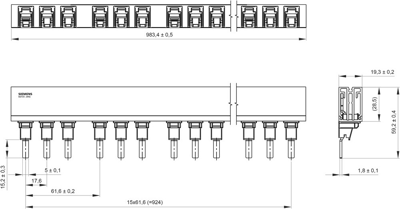

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 984 mm | |
| Product type | pin busbar | |
| Width | 60 mm | |
| Suitable for | circuit breaker | |
| Version | 3-phase, cuttable, 18 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369001 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
