7900181 | SICK
Inductive sensor, PNP, flush mounting, not flush, 1 Form A (N/O), 200 mA, 7900181
Order No.: 28G104
EAN: 4099889447231
MPN:
7900181
IH06-04NPS-VW1
Unit Price (€ / pc.)
126.3304 € *
Available: 0 pcs.
Leadtime: On Request **
Inductive proximity sensors, 2.0 or 4.0 mm sensing range, type Sick IH06-.
3-wire proximity sensor, clocked short-circuit protection, polarity reversal protection, surge pulse suppression, stable stainless steel housing, high switching rate; Sensing range: 2.0 or 4.0 mm. Output: NO. Mounting mode: flush or protruding. Switching output: PNP. Voltage supply: 10 to 30 VDC. Voltage supply: < 1.2 V. Current consumption (inactive): < 20 mA. Continuous current: < 200 mA. Ready signal delay: < 100 ms. Degree of protection (EN 60529): IP 67. Ambient temperatures: –25 to +70 °C. Connection type: PVC cable (3 x 0.14 mm²), 2.0 m.
Sensing range 4.0 mm.
Mounting mode: protruding. Switching rate: < 1800 Hz.
Type: IH06-04NPS-VW1, proximity sensor

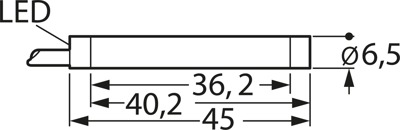

Technical specifications
| Detecting distance | 4 mm | |
| Degree of protection (IP) | IP67 | |
| Assembly | flush mounting, not flush | |
| diameter | 6.5 mm | |
| switching current | 200 mA | |
| Length | 45 mm | |
| Product type | inductive sensor | |
| Version | PNP | |
| Connection | cable, PVC 0.14 mm², 2 m | |
| Latching switching function | 1 Form A (N/O) |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85365080 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
