7900177 | SICK

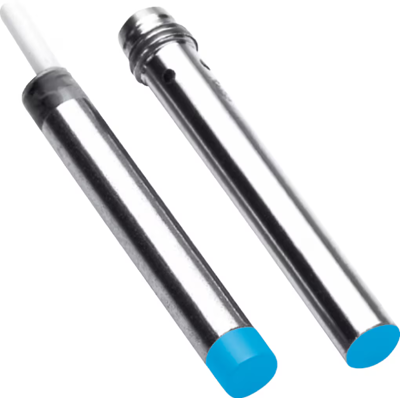

Inductive sensor, PNP, Flush mounting, quasi flush, 1 Form A (N/O), 200 mA, 7900177
Order No.: 28G100
EAN: 4099889446982
MPN:
7900177
IH06-02BPS-VW1
Unit Price (€ / pc.)
126.3304 € *
Standard delivery time from the manufacturer is: On Request
Inductive proximity sensors, 2.0 or 4.0 mm sensing range, type Sick IH06-.
3-wire proximity sensor, clocked short-circuit protection, polarity reversal protection, surge pulse suppression, stable stainless steel housing, high switching rate; Sensing range: 2.0 or 4.0 mm. Output: NO. Mounting mode: flush or protruding. Switching output: PNP. Voltage supply: 10 to 30 VDC. Voltage supply: < 1.2 V. Current consumption (inactive): < 20 mA. Continuous current: < 200 mA. Ready signal delay: < 100 ms. Degree of protection (EN 60529): IP 67. Ambient temperatures: –25 to +70 °C. Connection type: PVC cable (3 x 0.14 mm²), 2.0 m.
Sensing range 2.0 mm.
Mounting mode: flush. Switching rate: < 3000 Hz.
Type: IH06-02BPS-VW1, proximity sensor
Technical specifications
| Detecting distance | 2 mm | |
| Degree of protection (IP) | IP67 | |
| Assembly | Flush mounting, quasi flush | |

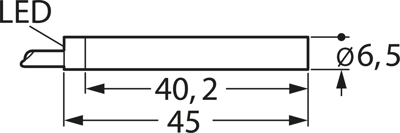

| diameter | 6.5 mm | |
| switching current | 200 mA | |
| Length | 45 mm | |
| Product type | inductive sensor | |
| Version | PNP | |
| Connection | cable, PVC 0.14 mm², 2 m | |
| Latching switching function | 1 Form A (N/O) |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85365080 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
