7900009 | SICK

Inductive sensor, PNP, flush mounting M8, not flush, 1 Form B (N/C), 30 V (DC), 200 mA, 7900009

Order No.: 28G134
EAN: 4099889447606
MPN:
7900009
IM08-04NPS-ZW1
Series: IM08

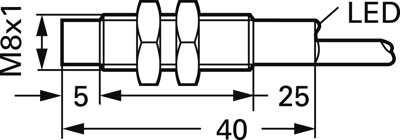

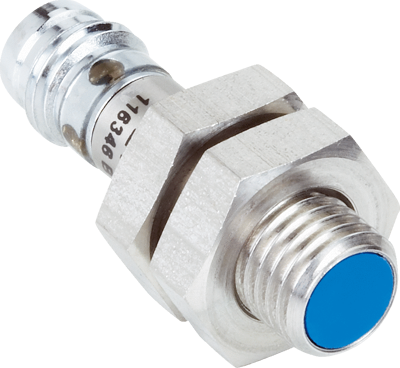

7900009 SICK Proximity Switches, Reed switches Image 1

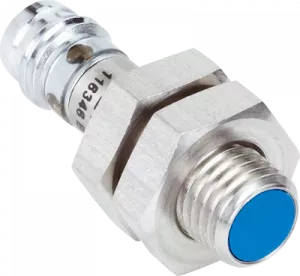

7900009 SICK Proximity Switches, Reed switches Image 2
Image may differ
Unit Price (€ / pc.)
97.8894 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
97.89 € *
Price list
Quantity
Price per unit*
1 pcs.
97.8894 €
3 pcs.
95.1762 €
5 pcs.
92.6177 €
*incl. VAT plus shipping costs
Subject to prior sale

Inductive proximity sensors, 2.0 or 4.0 mm sensing range, Sick IM08-.

3-wire proximity sensor, clock mode short-circuit protection, polarity reversal protection, surge pulse suppression. Rugged, nickel-plated brass case with M 8 x 1 mm extra-fine thread. High switching rate. Sensing range 2.0 or 4.0 mm

Output: NO or NC

Mounting mode: flush or protruding

Output: PNP

Voltage supply: 10 to 30 VDC

Voltage loss: < 1.2 V

Current consumption (inactive): < 20 mA

Continuous current: < 200 mA

Ready signal delay: < 100 ms

Degree of protection (EN 60529): IP 67

Ambient temperatures: - 25 to +70 °C

Connection type: PVC cable (3 x 0.14 mm²), 2.0 m, or M 8 3-pole male socket

Note: a description of the mating female connectors for the version with male socket is provided in chapter F.

Sensing range 4.0 mm.

Mounting mode: protruding

Switching rate: < 1800 Hz.

Technical specifications
Length 45 mm
Switching Voltage (DC) 30 V
Connection cable, PVC 0.14 mm², 2 m
Assembly flush mounting M8, not flush
Latching switching function 1 Form B (N/C)
switching current 200 mA
diameter 8 mm
Detecting distance 4 mm
Version PNP
Degree of protection (IP) IP67
Product type inductive sensor
Logistics
Customs tariff number 85365019
Country of origin IT
Compliance
SVHC free No
Substance description Lead
RoHS conform Yes
Date of RoHS guidelines 3/31/15
