1055447 | SICK
Inductive sensor, PNP, surface mounting, flush, 1 Form A (N/O), 200 mA, 1055447
Order No.: 28G229
EAN: 4047084276644
MPN:
1055447
IQ10-03BPSKW2S
Unit Price (€ / pc.)
104.6248 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
104.62 € *
Price list
Quantity
Price per unit*
1 pcs.
104.6248 €
2 pcs.
97.2944 €
5 pcs.
91.4634 €
10 pcs.
85.0612 €
*incl. VAT plus shipping costs
Subject to prior sale

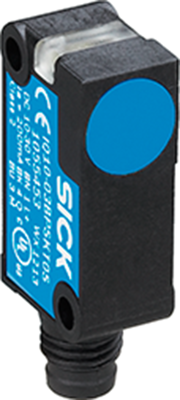

Inductive proximity sensors, 3.0 mm sensing range, type Sick IQ10-.
3-wire proximity sensor, 270° switching state indicator with extra-bright LED, safe and fast mounting, rugged plastic housing; Sensing range: 3.0 mm. Output function: NO. Mounting mode: flush. Switching output: PNP. Supply voltage: 10 to 30 VDC. Voltage drop: <2.0 V. Current consumption (not actuated): <10 mA. Continuous current: <200 mA. Ready signal delay: <100 ms. Switching rate: 2000 Hz. Degree of protection (EN 60529): IP 68. Ambient temperatures: –25 to +75 °C. Termination: PVC cable (3 x 0.25 mm²), 2.0 m length.
Type: IQ10-03BPSKW2S, proximity sensor
Technical specifications
| Filter | Property | Value |
|---|---|---|
| switching current | 200 mA | |
| Latching switching function | 1 Form A (N/O) | |
| Degree of protection (IP) | IP67/IP68 | |
| Assembly | surface mounting, flush | |
| Connection | cable, PVC 0.25 mm², 2 m | |
| Detecting distance | 3 mm | |
| Version | PNP | |
| Product type | inductive sensor | |

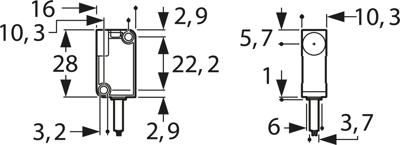

| Length | 28 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
