SHELLY RCS | Shelly
Shelly, In-wall accessories, "RC Snubber"
Unit Price (€ / pc.)
2.7132 € *
Available: 4 pcs.

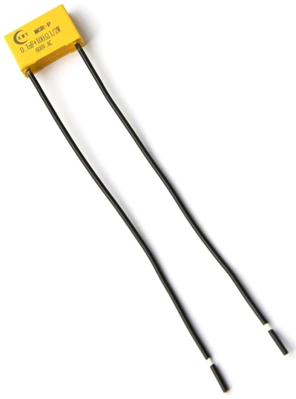

RC Snubber, SHELLY_RCS, Shelly
The RC Snubber is a component that comprises a resistor (R) and a capacitor (C) connected in series. It effectively mitigates voltage spikes that can occur during the switching of inductive loads by providing a short-term alternative current path around the switching device, so that the inductive load is safely discharged. The RC Snubber can protect sensitive components of your device from voltage spikes and improve the overall performance and reliability of the connected circuits.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | RC snubber 230 VAC | |
| With fuse | No | |
| Capacity X|Y | 0.1 µF | |
| ohmic resistance | 100 kΩ | |
| integrated switch | No | |
| Rated Voltage | 600 VAC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322900 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
