SHELLY PRO 3EM 120A | Shelly
Active energy meter, 3 phase, 3 x 120 A, WiFi, (L x W x H) 69 x 19 x 94 mm, SHELLY PRO 3EM 120A
Unit Price (€ / pc.)
165.41 € *
Available: 16 pcs.

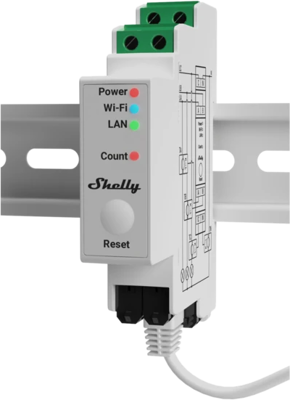

3-phase energy meter, SHELLY_PRO_3EM_120A, Shelly
The SHELLY_PRO_3EM_120A is a DIN rail mountable three-phase energy meter. Enhanced with all the Gen 2 firmware flexibility and LAN connectivity, it provides professional integrators with additional options for end-customer solutions. Shelly Pro 3EM reports accumulated energy as well as instantaneous voltage, current, and power factor per phase in real time.
Features
- Wi-Fi, LAN, and Bluetooth connectivity
- 4-quadrant measurement
- Accuracy class B (active energy)
- MODBUS support
- Power monitoring
- Scripting functionalities
- Enhanced safety
- Enhanced security
- Highly compatible
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 69 mm | |
| Height | 94 mm | |
| Width | 19 mm | |
| Weight | 62 g | |
| Product type | active energy meter | |
| Version | 3 phase, 3 x 120 A, WiFi |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
