07400024002 | SES-Sterling

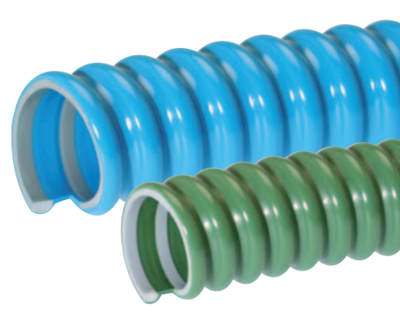

Spiral protective hose, inside Ø 22 mm, outside Ø 27.5 mm, PVC, blue, 07400024002
Order No.: 91F9949
EAN: 3597470123249
MPN:
07400024002
ELECTROFLEX CALOR 158-022 BU
Series: ELECTROFLEX calor
Unit Price (€ / mtr.)
6.2356 € *
Available in 7 Days: 165 mtr. - if ordered today
Reinforced flexible conduit, 07400024002, SES-Sterling
The ELECTROFLEX tubing is produced with a spiral reinforcement in rigid PVC and is therefore non-metallic. It can be easily cut with a knife or scissors. Very flexible it withstands a very low bending radius. The inside is smooth and allows cable to pass through easily and it can coil around its own diameter without flattening or deforming.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 90 °C | |
| min. operating temperature | -20 °C | |
| Colour | blue | |
| Outer diameter | 27.5 mm | |
| Material | PVC | |
| Inner diameter | 22 mm | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39173200 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
