07400014003 | SES-Sterling

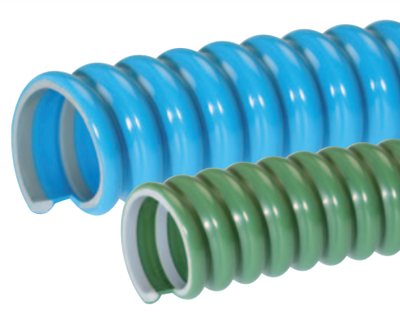

Spiral protective hose, inside Ø 22 mm, outside Ø 27.5 mm, PVC, green, 07400014003
Order No.: 91F9941
EAN: 3597470123157
MPN:
07400014003
ELECTROFLEX OIL 154-022 GN
Series: ELECTROFLEX oil
Unit Price (€ / mtr.)
6.2356 € *
Available: 0 mtr.
Leadtime: 3 Weeks **
Reinforced flexible conduit, 07400014003, SES-Sterling
The ELECTROFLEX tubing is produced with a spiral reinforcement in rigid PVC and is therefore non-metallic. It can be easily cut with a knife or scissors. Very flexible it withstands a very low bending radius. The inside is smooth and allows cable to pass through easily and it can coil around its own diameter without flattening or deforming.
Technical specifications
Colour | green | |
Outer diameter | 27.5 mm | |
Degree of protection (IP) | IP65 | |
min. operating temperature | -5 °C | |
Material | PVC | |
max. operating temperature | 70 °C | |
Inner diameter | 22 mm |
Download
Logistics
Country of origin | GB |
Customs tariff number | 39173200 |
Compliance
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
RoHS conform | Yes |
