0630 0116 010 | SES-Sterling

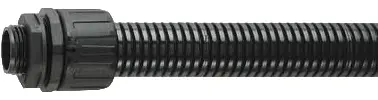

Corrugated hose, inside Ø 35.5 mm, outside Ø 42.5 mm, BR 70 mm, PA, black, 0630 0116 010

Order No.: 91F9788
EAN: 3597470595824
MPN:
0630 0116 010
PLIOWELL PWAS 42
Series: PLIOWELL PWAS
0630 0116 010 SES-Sterling Protective Tubes
Image may differ
Unit Price (€ / mtr.)
10.2935 € *
Available in 7 Days: 175 mtr. - if ordered today
Total Price:
257.34 € *
*incl. VAT plus shipping costs
Subject to prior sale
25 mtr.
10.2935 €

Corrugated flexible conduit, 0630 0116 010, SES-Sterling

The 0630 0116 010 is a corrugated flexible conduit in Polyamid 6. Economic conduit offering a good flexibility and impact resistance. Used for various equipment and electrical instalations (harnesses, machine tools).

Technical specifications
Filter Property Value
max. operating temperature 120 °C
min. operating temperature -40 °C
Colour black
Outer diameter 42.5 mm
Material PA
Bending radius 70 mm
Inner diameter 35.5 mm
Degree of protection (IP) IP66
Nominal width 42 mm
Logistics
Property Value
Customs tariff number 39173200
Country of origin GB
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
