0630 0115 010 | SES-Sterling

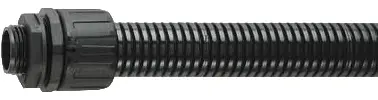

Corrugated hose, inside Ø 28.1 mm, outside Ø 34.5 mm, BR 60 mm, PA, black, 0630 0115 010
Unit Price (€ / mtr.)
6.9258 € *
Available in 7 Days: 100 mtr. - if ordered today
Corrugated flexible conduit, 0630 0115 010, SES-Sterling
The 0630 0115 010 is a corrugated flexible conduit in Polyamid 6. Economic conduit offering a good flexibility and impact resistance. Used for various equipment and electrical instalations (harnesses, machine tools).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP66 | |
| Material | PA | |
| max. operating temperature | 120 °C | |
| Nominal width | 34 mm | |
| Outer diameter | 34.5 mm | |
| min. operating temperature | -40 °C | |
| Inner diameter | 28.1 mm | |
| Bending radius | 60 mm | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | GB |
| Customs tariff number | 39173200 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
