08220021005 | SES-Sterling
Heatshrink tubing, 2:1, (2.5/1.2 mm), PVC, orange, 08220021005
Unit Price (€ / mtr.)
0.7854 € *
Available in 7 Days: 400 mtr. - if ordered today

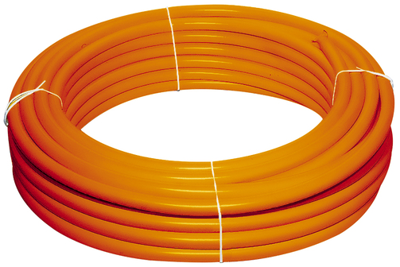

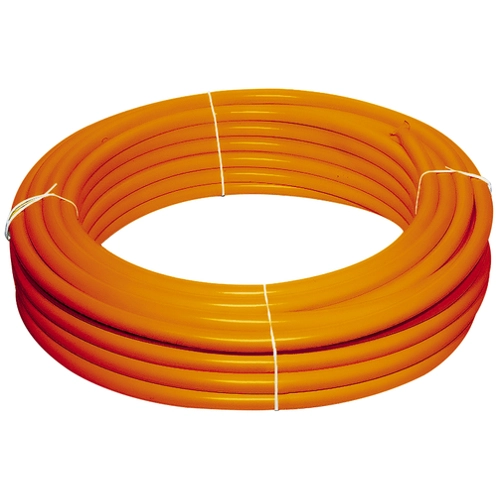

Heat shrink tubing, 08220021005, SES-Sterling
The 08220021005 heat shrinkable insulating sleeve is an entry-level product for everyday use. It is characterised by its thin wall and its glossy appearance. To prevent shrinkage due to temperature during transport and storage, this tubing is supplied inflated with low pressure air and sealed at both ends.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 90 °C | |
| contains glue inside | No | |
| Wall thickness | 0.45 mm | |
| Length | 100 m | |
| Colour | orange | |
| Inner diameter after shrinkage | 1.2 mm | |
| Shrinking temperature | 120 °C | |
| Material | PVC | |
| Shrinking rate | 2:1 | |
| min. operating temperature | -20 °C | |
| Inner diameter before shrinkage | 2.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Original Packaging | Reel with 100 meters |
| Customs tariff number | 39173200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
