08220007005 | SES-Sterling

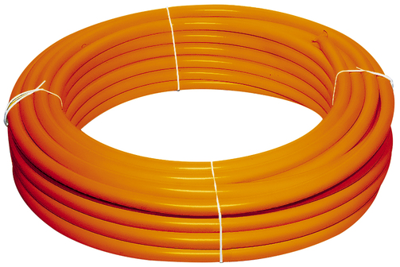

Heatshrink tubing, 2:1, (17/10 mm), PVC, orange, 08220007005
Unit Price (€ / mtr.)
2.6180 € *
Available in 7 Days: 250 mtr. - if ordered today
Heat shrink tubing, 08220007005, SES-Sterling
The 08220007005 heat shrinkable insulating sleeve is an entry-level product for everyday use. It is characterised by its thin wall and its glossy appearance. To prevent shrinkage due to temperature during transport and storage, this tubing is supplied inflated with low pressure air and sealed at both ends.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contains glue inside | No | |
| Inner diameter before shrinkage | 17 mm | |
| max. operating temperature | 90 °C | |
| Length | 100 m | |
| min. operating temperature | -20 °C | |
| Colour | orange | |
| Inner diameter after shrinkage | 10 mm | |
| Material | PVC | |
| Wall thickness | 0.8 mm | |
| Shrinking rate | 2:1 | |
| Shrinking temperature | 120 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39173200 |
| Original Packaging | Reel with 100 meters |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
