0639 0003 018 | SES-Sterling

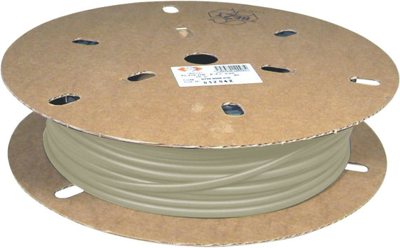

Heatshrink tubing, 2:1, (3.2/1.6 mm), PO, crosslinked, natural, 0639 0003 018
Unit Price (€ / mtr.)
1.071 € *
Available in 7 Days: 600 mtr. - if ordered today
Heat shrink tubing, 0639 0003 018, SES-Sterling
Heat shrinkable tubing PLIOFINE is composed of cross-linked Polyolefin (derived from polyethylene), unlike heat shrinkable sleeving PLIO "R" it cannot be melted or welded and has excellent chemical properties. It is cost effective. Dielectric properties, ageing and weather resistance are excellent, and the sleeving needs no special storing conditions as it remains inert up to +50°C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shrinking temperature | 120 °C | |
| Colour | natural | |
| Length | 150 m | |
| Inner diameter before shrinkage | 3.2 mm | |
| Inner diameter after shrinkage | 1.6 mm | |
| max. operating temperature | 105 °C | |
| contains glue inside | No | |
| min. operating temperature | -55 °C | |
| Material | PO, crosslinked | |
| Wall thickness | 0.51 mm | |
| Shrinking rate | 2:1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 39173200 |
| Original Packaging | Reel with 150 meters |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
