0603 0100 010 | SES-Sterling

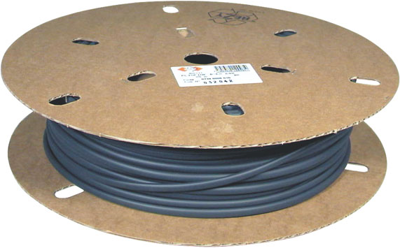

Heatshrink tubing, 2:1, (16/8 mm), PO, crosslinked, black, 0603 0100 010

Order No.: 91F9770
EAN: 3597470090695
MPN:
0603 0100 010
SAM 16,0
Series: PLIOFINE SAM
0603 0100 010 SES-Sterling Heat Shrink Tubing
Image may differ
Unit Price (€ / mtr.)
4.4268 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
221.34 € *
Price list
Quantity
Price per unit*
50 mtr.
4.4268 €
150 mtr.
4.1412 €
*incl. VAT plus shipping costs
Subject to prior sale

Heat shrink tubing, 0603 0100 010, SES-Sterling

Heat shrinkable tubing PLIOFINE is composed of cross-linked Polyolefin (derived from polyethylene), unlike heat shrinkable sleeving PLIO "R" it cannot be melted or welded and has excellent chemical properties. It is cost effective. Dielectric properties, ageing and weather resistance are excellent, and the sleeving needs no special storing conditions as it remains inert up to +50°C.

Technical specifications
Colour black
Shrinking temperature 120 °C
contains glue inside No
Inner diameter before shrinkage 16 mm
Wall thickness 0.64 mm
Length 50 m
Inner diameter after shrinkage 8 mm
min. operating temperature -55 °C
Material PO, crosslinked
max. operating temperature 125 °C
Shrinking rate 2:1
Logistics
Country of origin DE
Customs tariff number 39173200
Original Packaging Reel with 50 meters
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
