0603 0010 010 | SES-Sterling

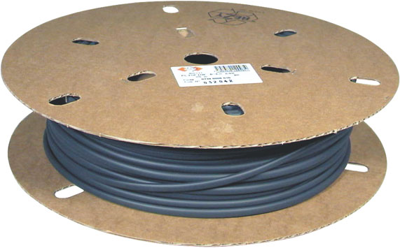

Heatshrink tubing, 2:1, (1.6/0.8 mm), PO, crosslinked, black, 0603 0010 010
Unit Price (€ / mtr.)
1.5708 € *
Available: 150 mtr.
Available in 7 Days: 825 mtr. - if ordered today
Total Price:
1.57 € *
Price list
Quantity
Price per unit*
1 mtr.
1.5708 €
10 mtr.
1.3328 €
50 mtr.
1.2138 €
150 mtr.
1.1305 €
*incl. VAT plus shipping costs
Subject to prior sale
Heat shrink tubing, 0603 0010 010, SES-Sterling
Heat shrinkable tubing PLIOFINE is composed of cross-linked Polyolefin (derived from polyethylene), unlike heat shrinkable sleeving PLIO "R" it cannot be melted or welded and has excellent chemical properties. It is cost effective. Dielectric properties, ageing and weather resistance are excellent, and the sleeving needs no special storing conditions as it remains inert up to +50°C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| contains glue inside | No | |
| Shrinking temperature | 120 °C | |
| Inner diameter before shrinkage | 1.6 mm | |
| Inner diameter after shrinkage | 0.8 mm | |
| Wall thickness | 0.45 mm | |
| max. operating temperature | 125 °C | |
| Material | PO, crosslinked | |
| Shrinking rate | 2:1 | |
| min. operating temperature | -55 °C | |
| Length | 150 m |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Original Packaging | Reel with 150 meters |
| Customs tariff number | 39173200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
